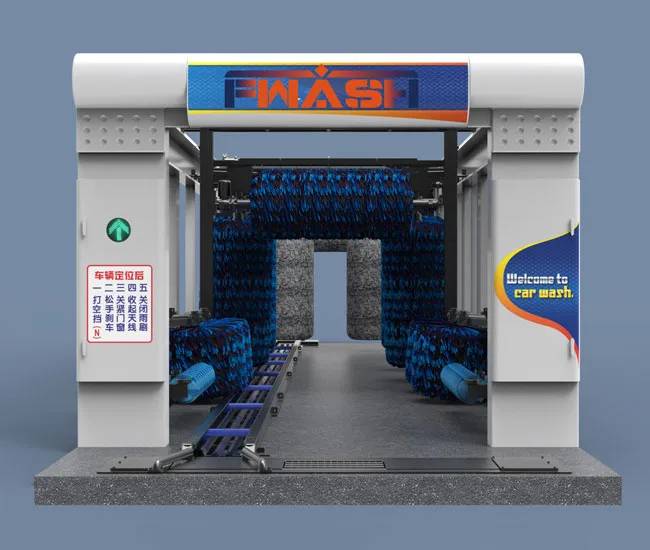

Tunnel Car Wash Machine
According to market trends, FWash has developed a car wash tunnel system that works for continuous car washing of up to 50 to 60 cars per hour. This car wash tunnel system is affordable, and suitable for washing sedans, SUVs and other vehicles.
Product Description
The tunnel car wash system has the same basic principle as the rollover car wash machine, in that it drags cars, facilitating movement along rails. The vehicles are sprayed with water, scrubbed, sprayed with a water wax, then dried- all inside the tunnel.
Function
1. High-pressure water rinse – foam wash – water wax spray
2. Voice prompt
Tunnel Car Wash Machine – To Attract Even More Customers!

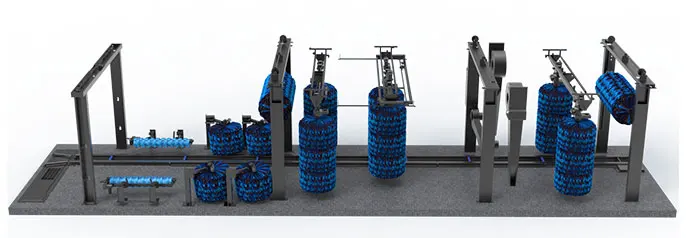

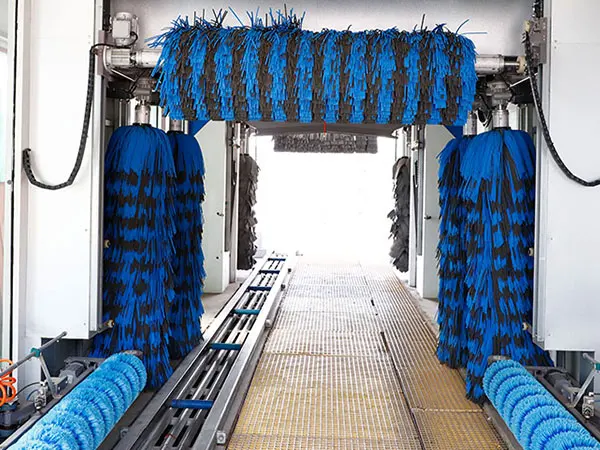

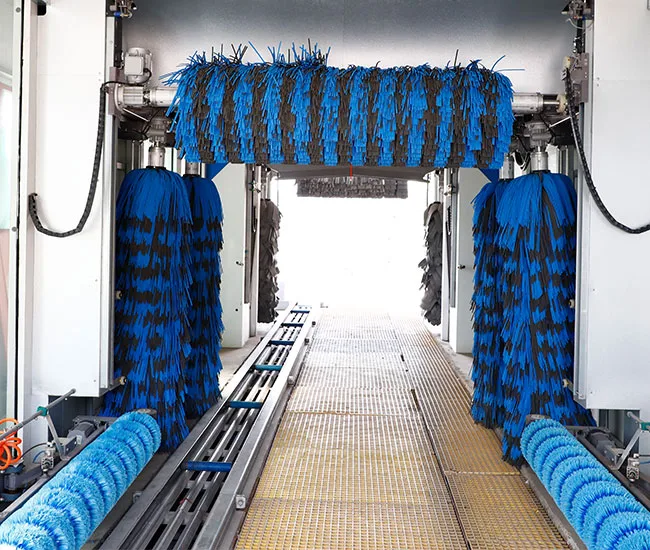

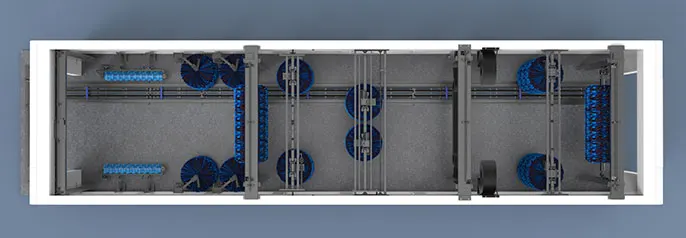

This tunnel car wash system features 5 car brushes: 1 vertical lift overhead brush, 2 small vertical brushes and 2 large vertical brushes. The galvanized frame of this car wash system is both solid and durable, and the control system is a fully automatic PLC computer control system, which improves security levels. For more details, please see the table below.
- The galvanized frame of this tunnel car wash system is both solid and durable.
- The high pressure wash system improves the washing performance.
- The foam and water wax proportioning system is easy to use.
- One group of lift dryers.
- The liquid automatic siphon is easy to operate.
- Open Bay Configuration
- Remote Monitoring and Configuration
- Exceptional Cleaning
- Low Maintenance Costs
- Aircraft grade anodized aluminum bridge and main rails – Now Standard
- Non-corrosive materials used – stainless and aluminum
- Stainless steel pump station design focused on improved functionality and low maintenance costs
- Ultimate cover package
- Welded manifolds replacing assemblies of fittings-reduces leak points
- Distributor Support
- 24/7 Technical Service Support
- Customer Friendly Virtual Treadle
- It adopts PLC fully automatic computer control
- It adopts an upper-suspended double swing arm structure, which can achieve 360° car washing without blind spots and has a fast car washing speed.
- The equipment operates stably and reliably with high safety.
- Optimize the framework structure to occupy less space.
- It adopts the Japanese Welco liquid metering pump, which has a long service life.
- Energy-Efficient Design
- Low Water and Chemical
- Consumption
- Exceptional Local
- High-pressure water rinse – foam wash – water wax spraying
- Voice prompt function
- It can effectively remove various attachments, achieving a better cleaning effect.
- The 360° water jet high-pressure water system ensures no blind spots in cleaning and provides excellent cleaning results.
- Water wax makes the car body look as good as new and forms a protective film that adheres to the surface of the car paint.
| Overall dimension | 7000*3800*3440mm | Available car to wash | Car\jeep\coach within 10 seats |
| Length of conveyor: 9120mm (including wheel guide) | Moving range | 5300*2100*2100mm(wheelbase≤3200mm) | |

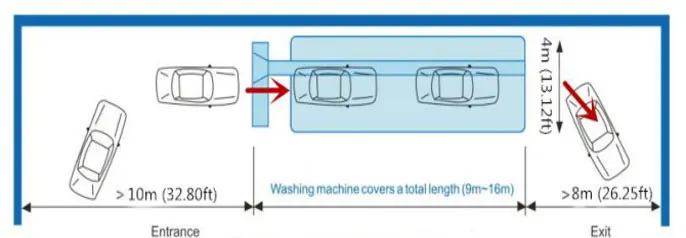

| Installation size | 9250*4000mm | Car wash capacity | 45-55 sets/hour |
| Voltage | AC 380V 50Hz (5-wire system) | Water consumption | 130L/car |
| Water supply | Pipe diameter: DN25, water flow≥200L/min | Power consumption | 0.6kW/car |
| Air supply | Air pressure: 0.75-0.9MPa, air flow≥0.1m³/min | Shampoo consumption | 20-40ml/car |
| Ground flatness | Deviation≤10mm | Wax consumption | 30ml/car |

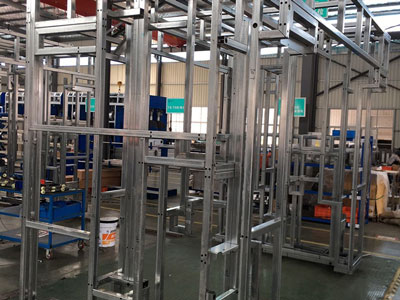

Non-welded hot-dipped galvanized steel frame
SITI Motor
Air dryer

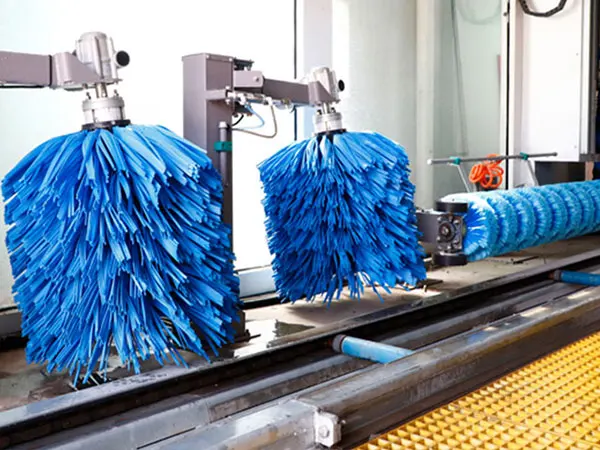

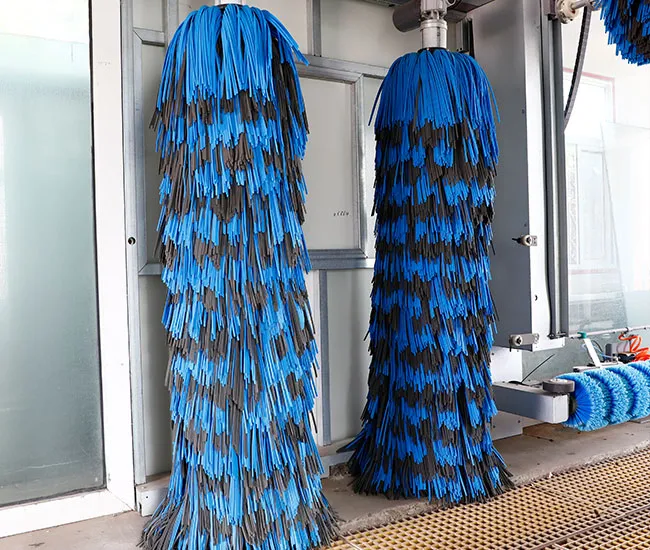

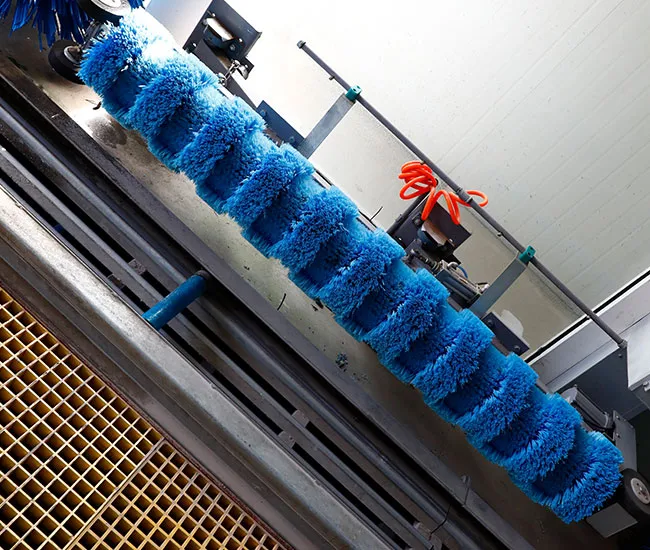

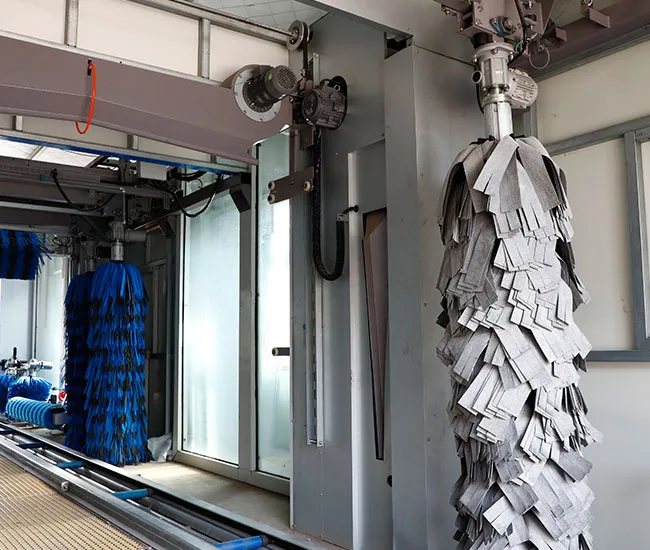

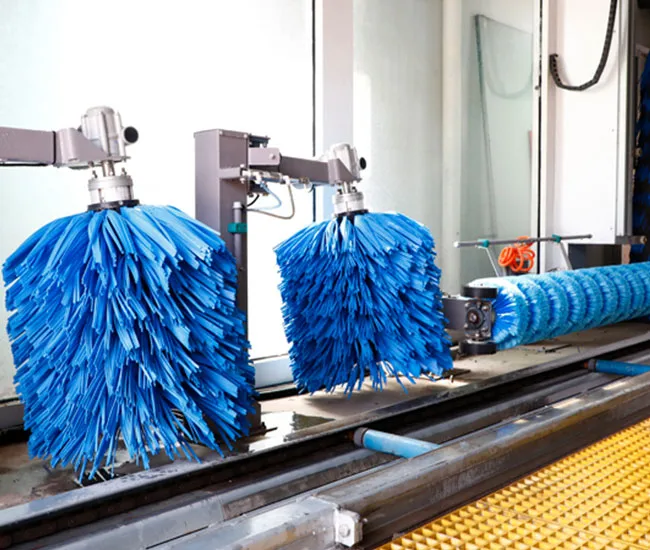

Foam brushes
After years of research and development, 4th generation of swallow-tailed foam brushes contain an appropriate proportion of rubber and thus prevent potential risks. Foam brushes have great capacity to retain water, which incredibly improves the washing effect.

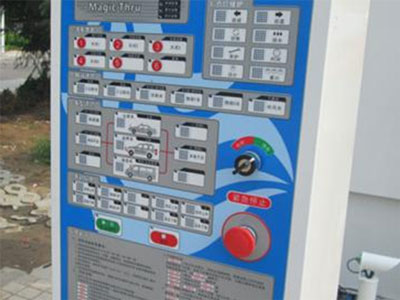

Control panel
Being enclosed Water proofing Long life of the circuit board

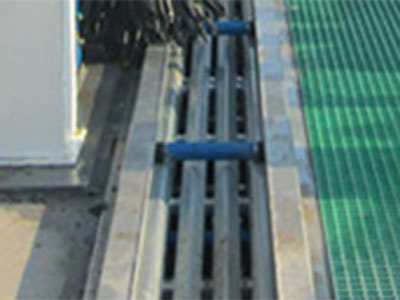

Conveyors
Suitable for various types of cars Equipped with P209 pillow block bearing Long service life Convenient to maintain
Width
Tunnel car wash equipment CC-670 is 3.8 meters in width 2.2 meters for car wash is much safer

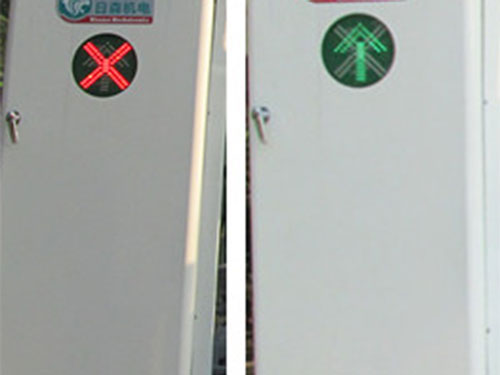

Signals at the entrance
Red cross and green arrow signal light Easy to notice

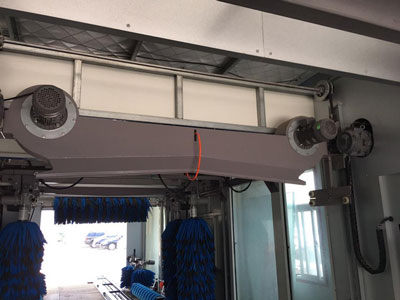

Dryers
Integral top dryers on both sides High-pressure air drying effect Move vertically to adapt to various cars
Introducing the Touchless Car Washing Machine – the innovative, efficient and highly advanced car washing solution that is designed to provide a superior car washing experience, without the use of water. The Touchless Car Washing Machine is ideal for commercial use, catering to vehicle owners who are looking for a quick, efficient and environmentally friendly way to wash their cars.
One unique feature of the Touchless Car Washing Machine is its use of high-pressure streams of water and air to remove dirt and other harmful contaminants from a car’s surface. This means that the machine does not require any brushes or cleaning pads, which can scratch or damage the car’s paint. The touchless design of the machine also reduces the risk of any damage to the car’s exterior, making it a highly sought-after car washing solution.
The Touchless Car Washing Machine is specifically designed for commercial use and can effectively clean a variety of vehicles, including cars, vans, trucks and buses. The machine is configurable to suit the specific needs of your business, and it can be installed in a car wash bay, mobile vehicle or as a standalone unit.
This machine is highly efficient and effective in removing dirt and contaminants from every corner of the vehicle, without damaging the paint or other exterior components. Its advanced technology ensures that the washing process is fast, thorough, and effective. Unlike traditional car washing methods that can take a considerable amount of time and water, the Touchless Car Washing Machine is designed to be fast and efficient, reducing the washing time significantly.
The Touchless Car Washing Machine is also environmentally friendly, as it uses significantly less water than traditional car washing methods. By using high-pressure streams of water and air, the machine reduces water wastage and conserves this precious resource. This feature is crucial, especially in areas where water is scarce or where environmental concerns are a priority.
In addition to its technological advancements, the Touchless Car Washing Machine is also designed to be easy to maintain and operate. It is equipped with user-friendly controls and an intuitive interface to simplify the washing process. This makes it easy for operators to use and maintain, reducing the chances of costly repairs or downtime.
Customers that purchase the Touchless Car Washing Machine can enjoy reduced operating costs, a lower environmental impact, and improved customer satisfaction. This is a product that will provide a fast and effective car wash, without compromising on quality.
Overall, the Touchless Car Washing Machine is a must-have for any commercial car washing business. Its advanced technology, eco-friendly design, and ease of use make it an attractive option for businesses that want to provide a better car washing experience to their customers. By investing in this product, you can increase customer satisfaction, reduce operating costs and make a positive environmental impact.
Touchless Car Wash Machine Hardware Configuration
Are there any brushes on the Automatic Car Wash?
The LaserWash 360 Plus was designed to give you the ability to reuse a few items you may have already. You may be able to reuse the existing wall mounts as well as the undercarriage manifold. We tried to make the process as easy as possible for existing Laser4000 owners.
Is the machine available outside of the US?
YES! The machine is available worldwide and is CE certified.
Is the dryer shut off for open bed pickups a set function or can it be disabled?
The dryer shutoff is a configurable function; it can be disabled or enabled per machine. This option is configured during the wash setup. The demo did not show it, but there is also the ability to turn off only the center dryer producers so that the side producers continue to dry the sides of the truck box (for open bed pickups).
Does this machine have the nodes like the M5?
The LaserWash 360 Plus does use nodes. The machine control system consists of the pump node, bay node and bridge node.The LaserWash 360 Plus does use nodes. The machine control system consists of the pump node, bay node and bridge node.
What size bay will the LaserWash 360 Plus fit into?
The recommended bay should be 15′ wide (for wall mount) x 11′ high x 28′-10″ long. These are the recommended bay dimensions; please contact your local distributor for minimum dimensions.
The LaserWash 360 Plus can handle an impact at the rear of a vehicle, but what about the sides (mirrors) and front?
The LaserWash 360 Plus handles impacts in a similar fashion around the entire vehicle, not only the rear. If an impact occurs with an extended mirror, or with something on the front of the vehicle, it will reverse course, back away and try to clear the obstacle. This will happen as many times as it takes to clear the obstacle until an extent is reached (machine can’t move back any further). This is all part of our Smart 360 design efforts.
Is the pump the same as the existing Laser4000's pump and does it use 1 or 2 pumps for solutions?
The main pump used in the LaserWash 360 Plus pump station is the same model (General or CAT) as the LaserWash 4000. The solution application uses one separate dedicated solution pump.
Does the dryer stay on over an open bed truck?
The demo did not show it, but for the open bed there is also the ability to turn off only the center dryer producers so that the side producers continue to dry the sides of the open truck box.
Does the spray arch automatically reset like it does on the G5?
The LaserWash 360 Plus does reset itself similar to the G5 platform. We have many additional arch improvements that we will address in the video.
How is the truck bed measured or is it a selected wash package, and how does it handle pickups with bed covers?
The sensor that is used to detect the rear of the vehicle is also used to detect if the vehicle has an open bed. The sensor watches for height difference between the top of the cab and the bed of the pickup to determine that there is an open bed. This is not a special wash package. The feature can be enabled or disabled per machine in the wash setup screen. If there is a cover on the bed of the pickup and the difference in height between the top of the cab and the top of the cover is not too great, it will treat the cover as a normal part of the vehicle and not as an open bed.
